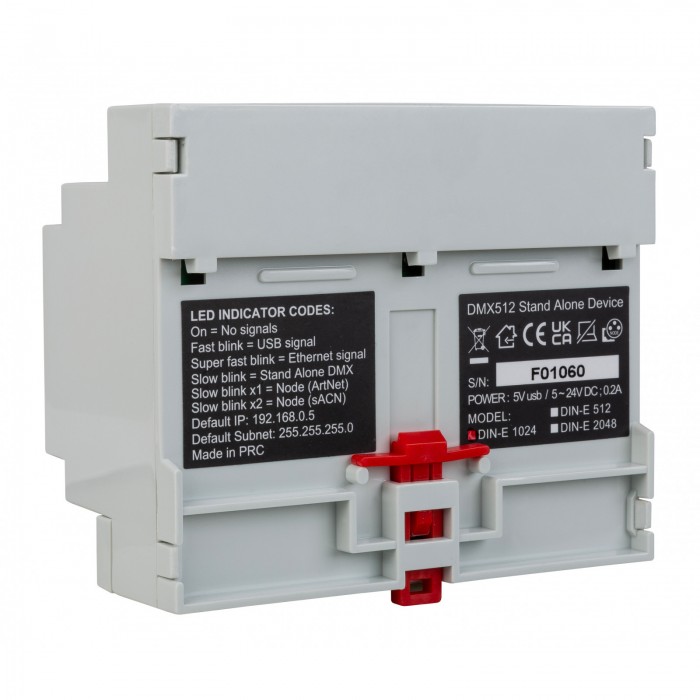

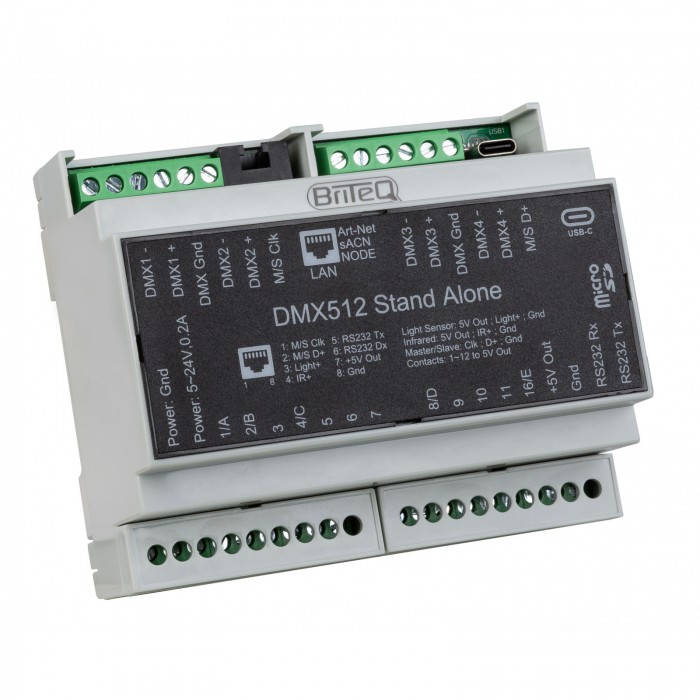

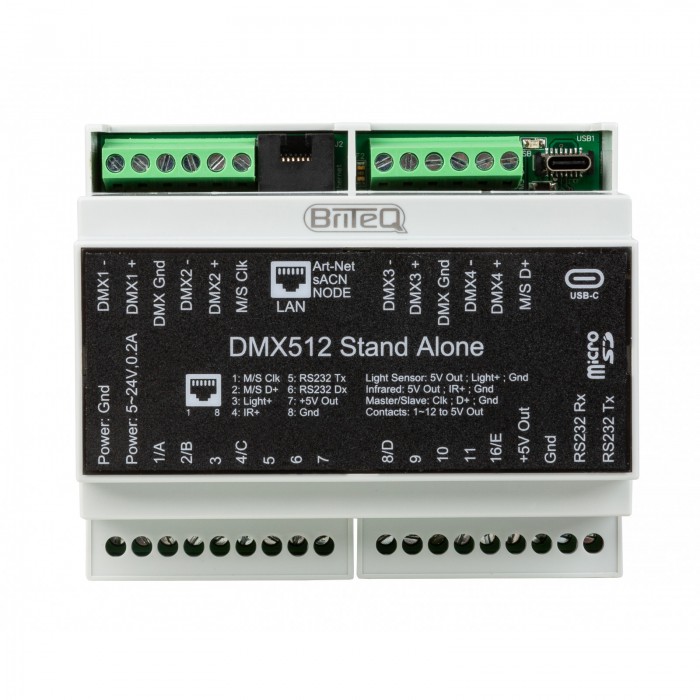

1024 Channel DMX interface & Multizone controller with Ethernet port for Local Area Network (LAN, WLAN) that can be easily mounted on a DIN Rail

• 1024 Channel DMX interface with ETHERNET port for Local Area Network (LAN, WLAN).
  • Can be used with the Wi-Light APP from a mobile device (Android + iOS) Video 'Wi-Light 2 APP'
  • 1024 output channels when used with a computer
  • Multizone 1024 output channels when used standalone without computer
• 30 minutes of Lighting, Audio and Video timeline synchronization with Pro DMX software
• Works with the Chromateq Led Player, Pro DMX, Pixxem, Studio DMX and Wi-Light 2 software (included).
• Functions and control in standalone mode:
  • Art-Net and sACN from SD card (including triggers)
  • Node to decode Art-Net and sACN to DMX (4 universes)
  • Automatic Real Time Clock triggering for different scenes (day, week, month, year)
  • External Triggering via 12 smart contacts
  • RS232 In/Out (16 characters for RS232 triggers, commands or orders)
  • UDP / Ethernet triggers and commands (from SDK)
  • Default start scene, scene priority, cross fade time
  • Total control via the Wi-Light 2 app (Android + iOS)
  • Multiple Zone control: 10 different programs can run simultaneously
  • Master/Slave mode for up to 64 interfaces connected together
  • An optional external infra-red receiver can be connected to the unit (LD-512Kit-IR = IR receiver + 2 remote controllers)
  • Micro SD card slot for memory extension
• Power supply: 5-24V, 0.2A input or 5V DC via USB-C

For more information about the software: www.chromateq.com

Algemeen : Afmetingen (cm): 11 x 10 x 6
Algemeen : Gewicht (kg): 0.5
Algemeen : Energie label: Nee
Algemeen : Kleur: Nee
Algemeen : Display: Nee
Algemeen : IP rating: indoor
Controle : protocol: Art-Net, sACN, DMX
Controle : programeerbaar: Ja
Controle : upgradable software: Ja
Controle : maximum DMX kanalen: 1024
Aansluiting : ingang: screw terminal block (dmx), usb, RJ45
Aansluiting : uitgang: screw terminal block (dmx)
Merk: BRITEQ
EANCode: 5420025650328
