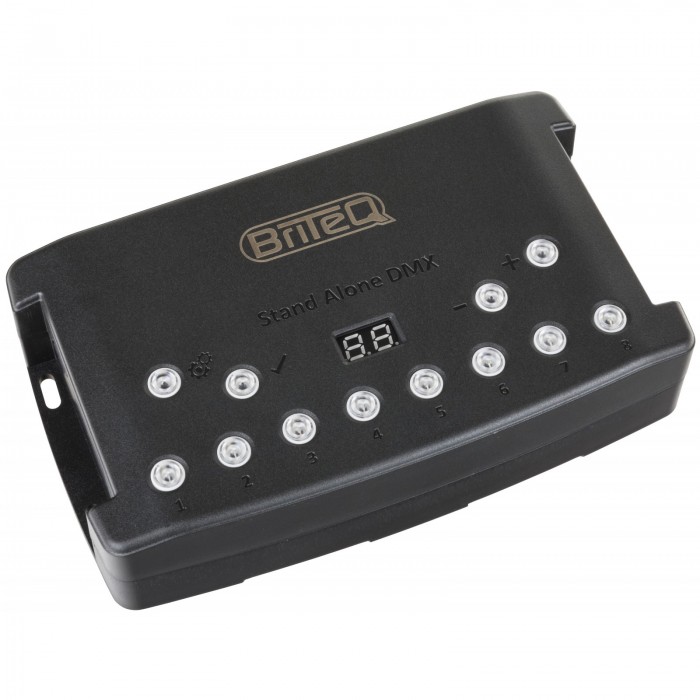

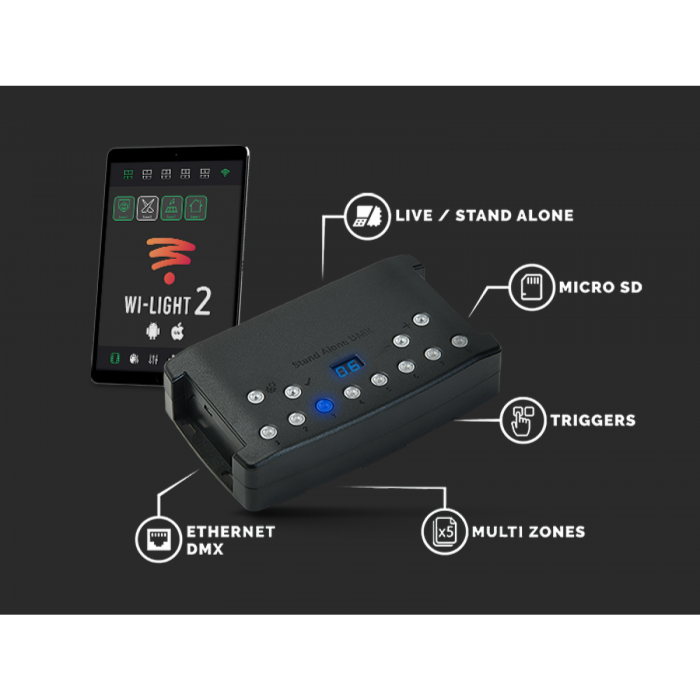

1024 Channel DMX interface & Multizone controller with Ethernet port for Local Area Network (LAN, WLAN).

• 1024 Channel DMX interface with ETHERNET port for Local Area Network (LAN, WLAN)

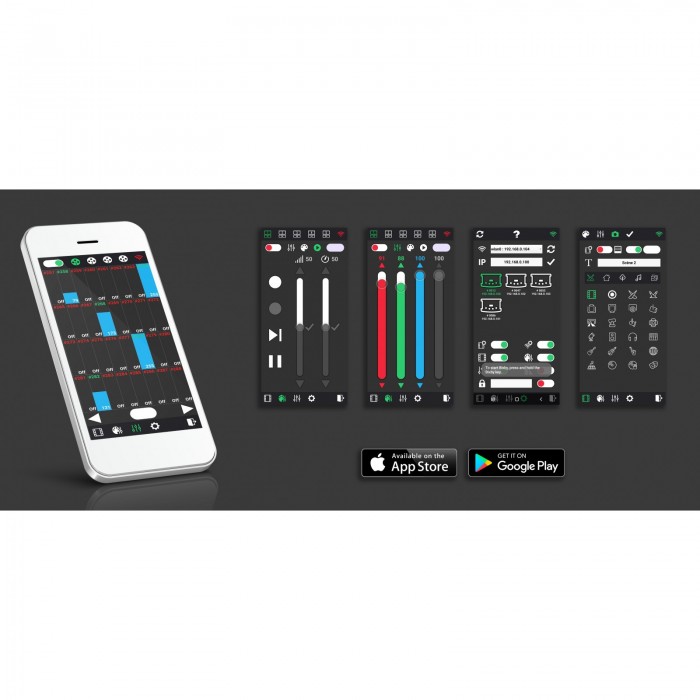

• Can be used with the Wi-Light APP from a mobile device (Android + iOS) : Video 'Wi-Light 2 APP'
• 1024 output channels when used with a computer
• Multizone 1024 output channels when used standalone without computer (max 6000 steps and 512 scenes max when 512 channels are used)
• 4Mb internal memory and external SD Card reader (extended memory for all type of Micro SD card)
• 16 bits channels management in standalone
• RS232 triggers for standaloneDMX
• input trigger standalone
• 30 minutes of Lighting, Audio and Video timeline synchronization with Pro DMX software
• Integrated DMX splitter (2 outputs)
• Works with the Chromateq Led Player and Chromateq Pro DMX software. (included)
• Functions and control in standalone mode:
• Automatic Real Time Clock triggering for different scenes (day, week, month, year)
• External Triggering via 7 contacts
• Select one of your 80 programs (max) via the 8 switch buttons x 10 selectable pages
• Multiple Zone control: 5 different programs can run simultaneously
• Program selection via the NEXT and PREVIOUS buttons
• General dimmer adjustment
• Speed adjustment of the programs
• Manual color selection of your customized colors via the 8 trigger buttons
• Manual color selection of 100 standard colors via the + and – buttons
• Master/Slave mode for up to 32 interfaces connected together
• 4Mb internal memory + SD card slot for memory extension

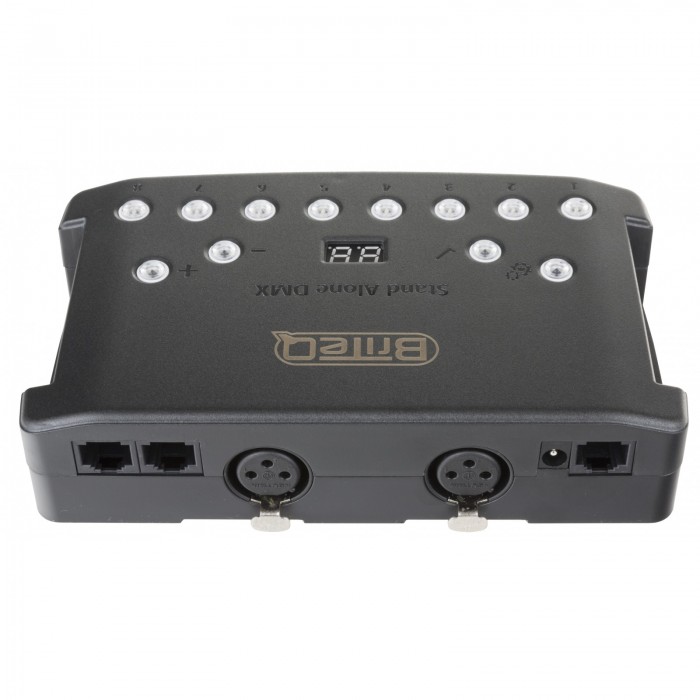

• 3-pin XLR connectors
• Power supply for the use in standalone mode: 9V to 36V via DC connectors, 5V via USB connector (optional)
• An optional external infra-red receiver can be connected to the unit (LD-512Kit-IR = IR receiver + 2 remote controllers)
• For more information about the software: www.chromateq.com

Algemeen : Afmetingen (cm): 14 x 9 x 4
Algemeen : Gewicht (kg): 0.5
Algemeen : Stroomvoorziening: External adaptor, 9Vdc
Algemeen : Energie label: Nee
Algemeen : Kleur: zwart
Algemeen : Display: LED
Algemeen : IP rating: indoor
Controle : protocol: Art-Net, DMX, MIDI
Controle : programeerbaar: Ja
Controle : upgradable software: Ja
Controle : maximum DMX kanalen: 1024
Aansluiting : ingang: 3 pin XLR, usb, RJ45
Aansluiting : uitgang: 3 pin XLR, RJ45
Merk: BRITEQ
EANCode: 5420025650281

Levertijd: Direct leverbaar (update: 21-12-2024)
