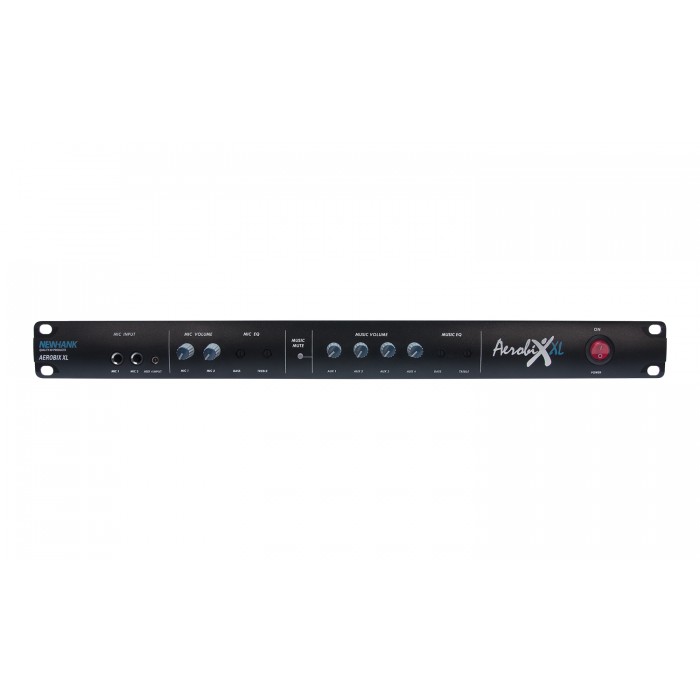

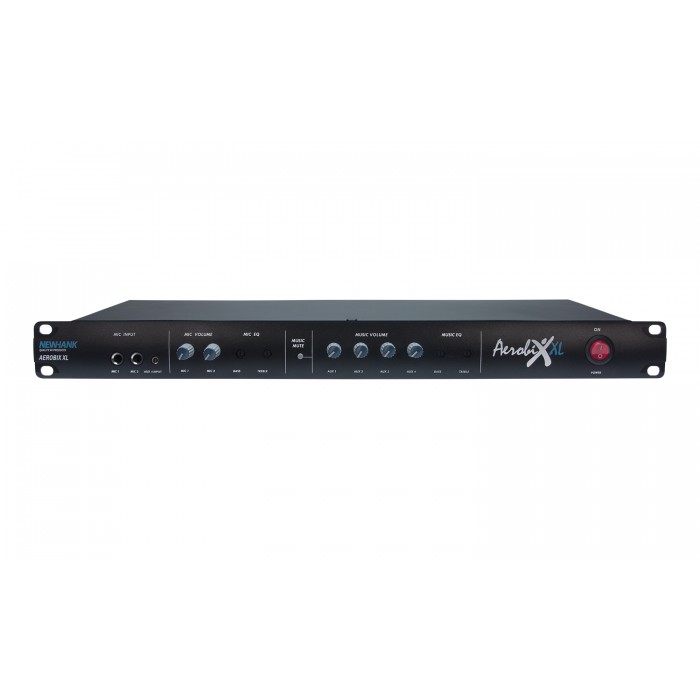

The Newhank Aerobix XL is a professional and easy to operate 6 channel stereo 1 U rack mixer with 4 stereo line and 2 balanced microphone inputs, that can be individually set to accept line levels and/or can both act as a 1 stereo balanced line input to be the input for another stereo mixer.

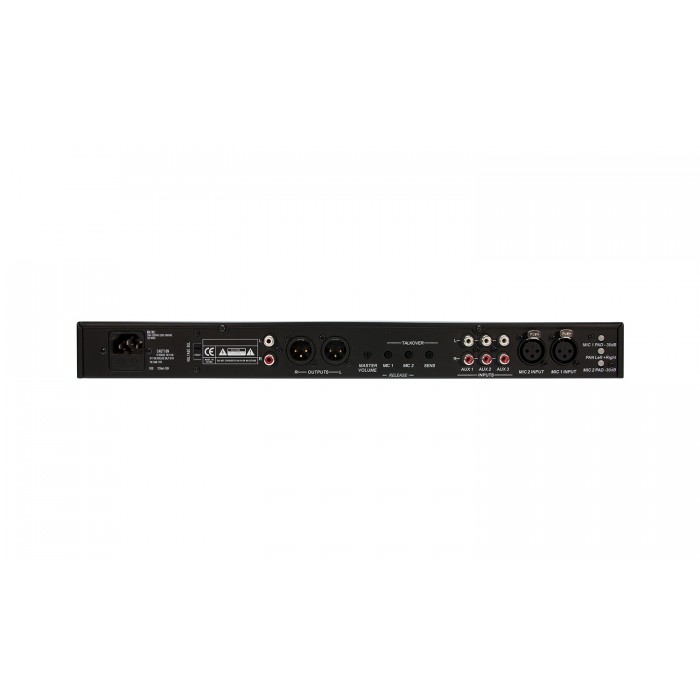

The Aerobix XL stereo output can be connected via a pair of – XLR and/or -unbalanced RCA connectors. With only outboard level-control, Aerobix XL is ideal in situations were many, or unskilled operators are adjusting sound…

Key Features:

• Compact 1u low noise audio design
• 2 Mic inputs both on 6,3 mm Jack and XLR connectors
• 2 Mic inputs can be individually switched to line level and can act together as 1 stereo input
• 3 stereo RCA Line inputs
• 1 stereo 3.5mm Jack input on the front panel
• Adjustable “Auto Talk Over”
• Individual volume controls
• Bass and treble controls can be adjusted with a screwdriver
• “Music Mute” switch
• Stereo master output both on RCA and XLR
• Min/Max output level can be set on the rear panel

EAN Code: 8718868408266

Line 10Kohm, Mic input impedance
Mic 600 0hm input impedance
S/N Ratio: 106 dB
Total Harmonic Distortion: <0.02% (IKHZ)
Frequency response 20Hz-20KHZ
Power Consumption 110-120v / 200-240v AC, 10W

Dimensions:
Face Panel 483x44.4mm
Rear Panel 433x44.4mm
Casing Depth 150mm (excluding connectors)
Package Dimensions: 610 x 470 x 400 mm
Weight: 4kg
Package Weight: 18.3kg
Unit per Package: 5pc

Update: 04-11-2024
